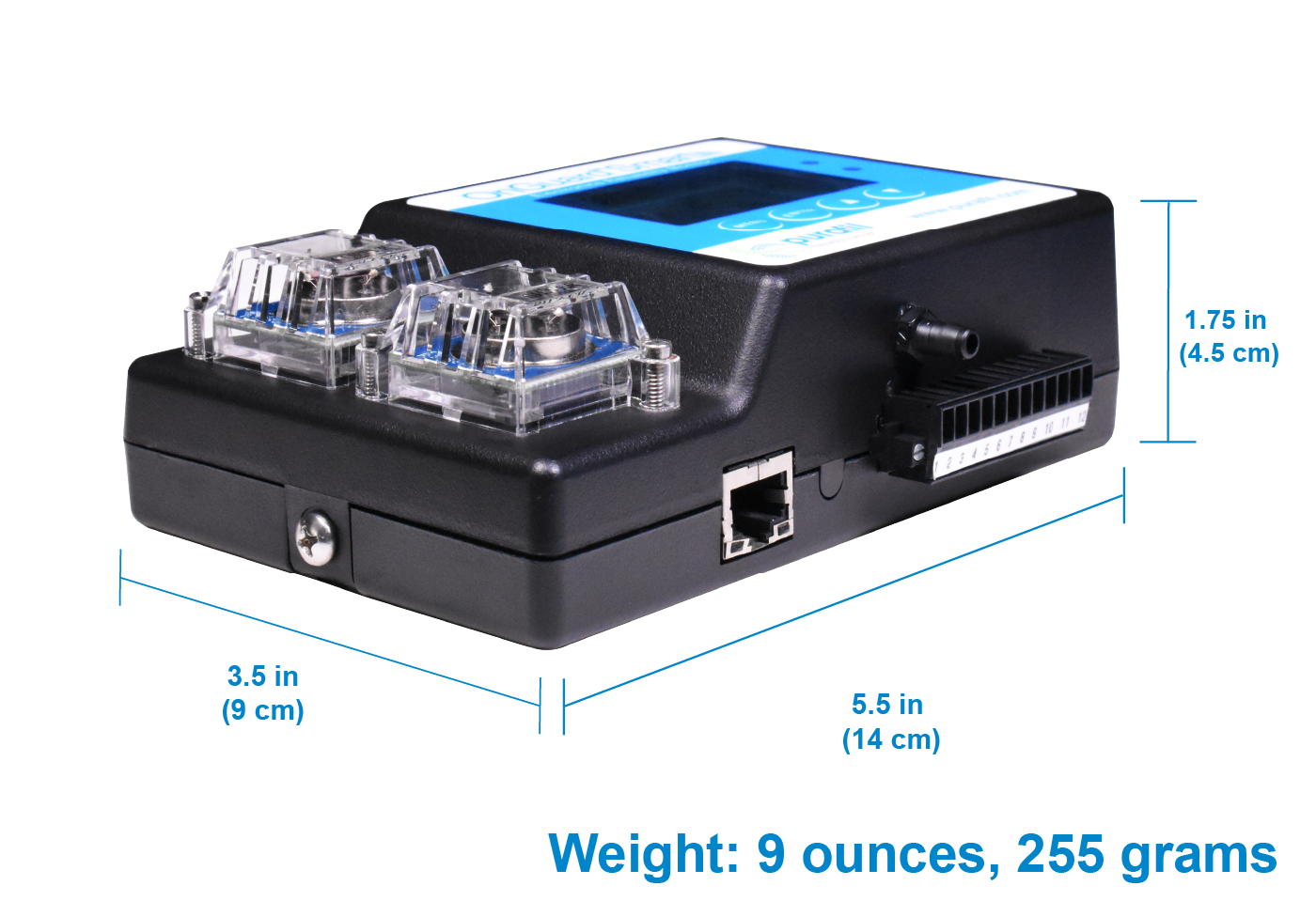

OnGuard Smart
- Indicates the level of corrosion before damage occurs, preventing costly repairs/downtime
- Ethernet enabled
- Easy remote access to data and graphs
- RoHS (Lead free directive. Or Restriction of Hazardous Substances Directive) compliant
- Measures corrosion, room air pressure, temperature, & relative humidity on a continuous basis
- Provides incremental and cumulative corrosion data

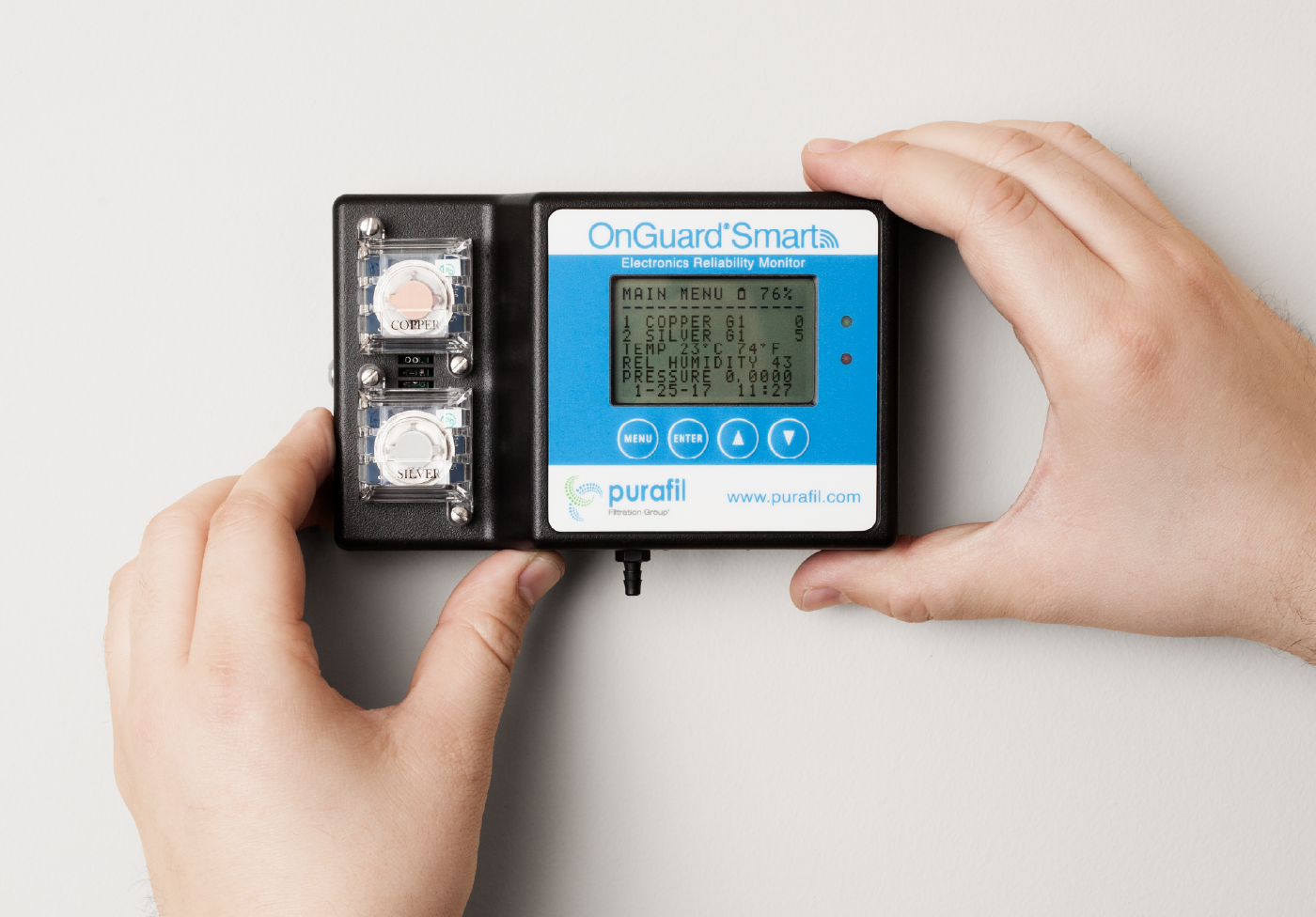

- Easy to install
- Long service life
- Readings correspond to ISA Standard 71.04-2013
Couldn't load pickup availability

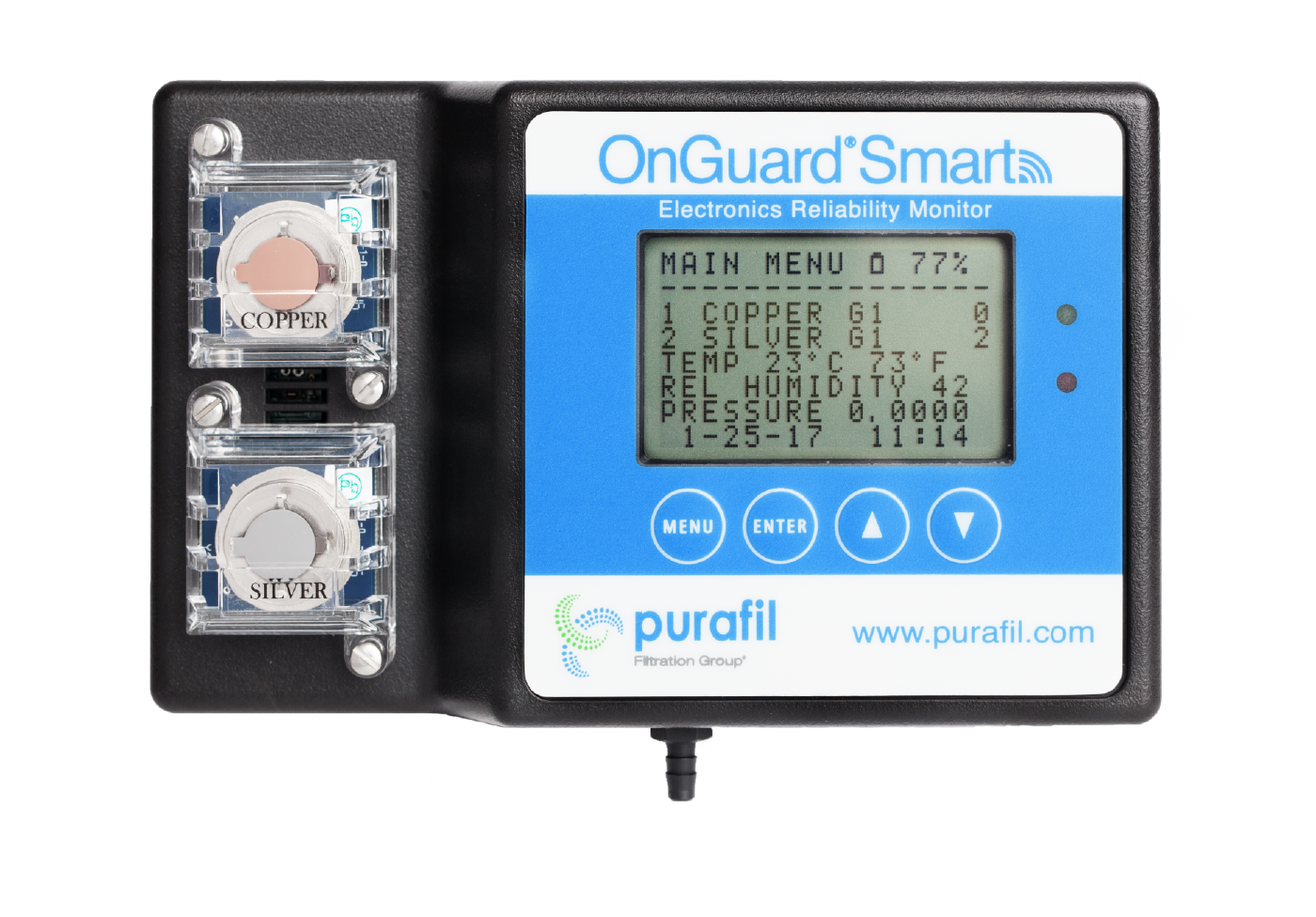

THE PURAFIL ONGUARD® SMART (OGS) ATMOSPHERIC CORROSION MONITOR

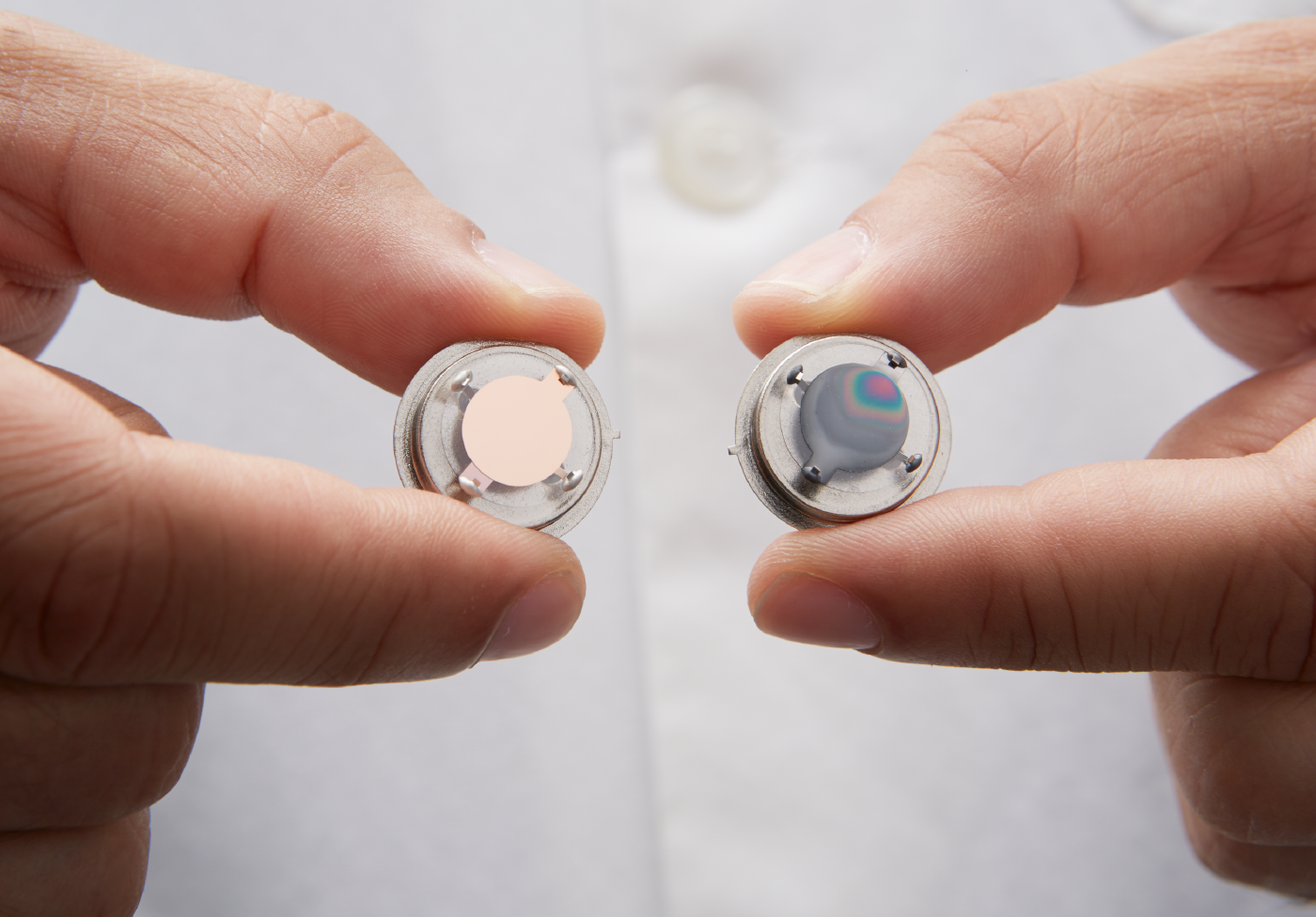

Indicates the level of corrosion before severe damage occurs, preventing costly downtime and maintenance repairs. The OnGuard’s copper and silver sensors measure the rate of corrosion in real-time. An internal data logger stores the results to be accessed through the internet or directly transmit to a process control system. The latest generation of OnGuard monitors now includes a room pressure sensor.
Since installing the complete Purafil solution, electronics failure has been eliminated, and they continue to maintain an G1 environment as classified by the International Society of Automation (ISA) Standard 71.04-2013 “Environmental Equipment Conditions for Process Management and Control Systems: Airborne Contaminants” - India’s Largest Telecom Company
Since utilizing Purafil, this critical control room has maintained a corrosion free environment for over 10 consecutive years. - A Major Paperboard Manufacturer
Purafil was selected because of their experience in the industrial marketplace and superior performance of their air purification systems. Purafil provided the technical knowledge and equipment necessary to build controlled environments that would protect production processes, and meet the standards established by the International Society of Automation (ISA). - World’s Largest Refinery
"Together, we developed an environmental control system that now works behind the scenes, protecting Michelangelo’s delicate work for future generations." - Representative, Preserving the Masterpiece in the Sistine Chapel
CORROSION CONTROL

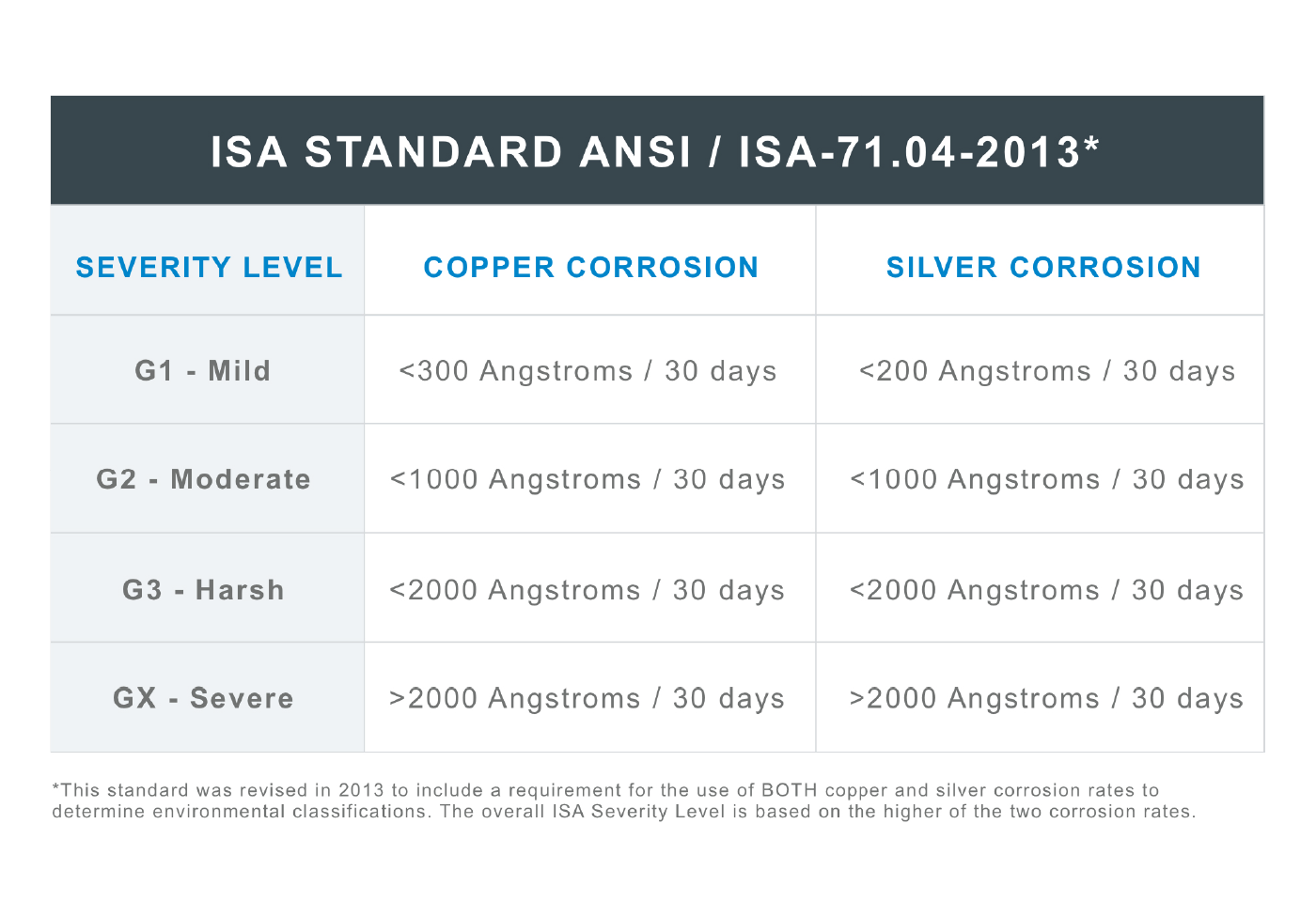

ISA ENVIRONMENTAL CLASSES:
AIRBORNE CONTAMINANTS
This standard requires that rooms containing backplane wired equipment, instrumentation, process control systems or computers, must have a G1 environmental classification, defined in terms of corrosion thickness as 0-299 Angstroms (Å) per 30 days on copper and 0-199 Å per 30 days on silver coupons. Purafil provides a report that directly correlates to the G1, G2, G3, and GX ratings.

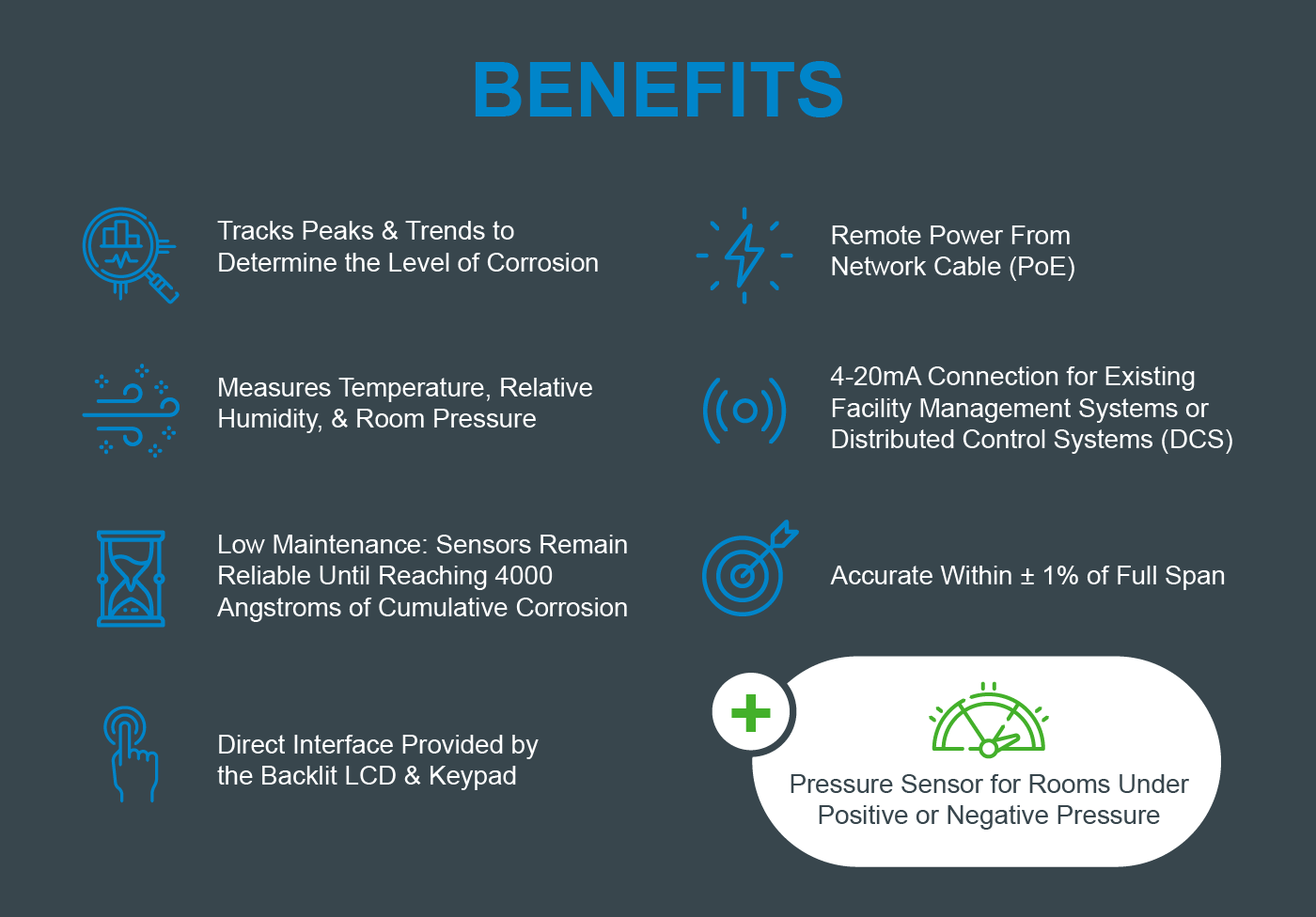

FEATURES
Tracks peaks and trends to determine the level of corrosion
Measures temperature, relative humidity, and room pressure
Low maintenance: Sensors remain reliable until reaching 4000 Angstroms of cumulative corrosion
Direct interface provided by the backlit LCD and keypad
Remote power from network cable (PoE)

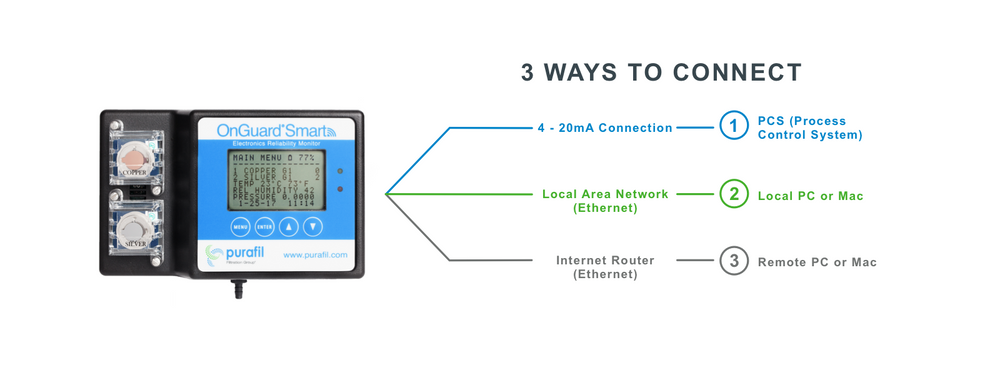

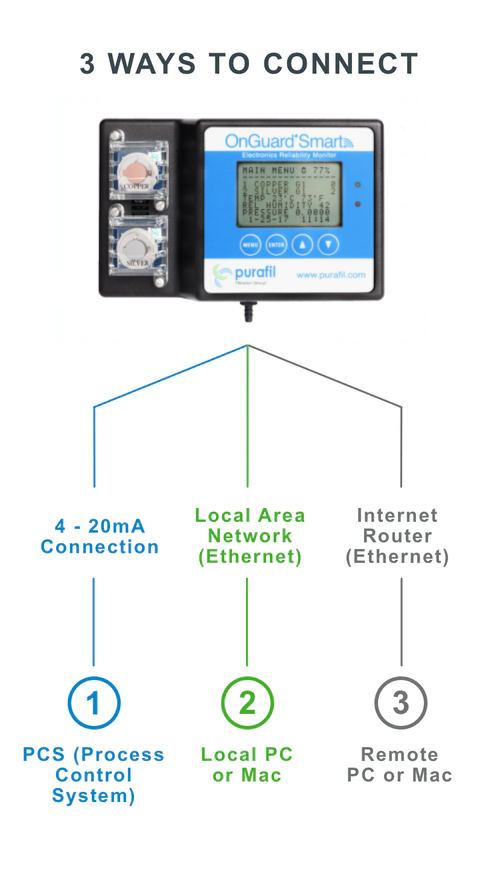

4-20mA connection for existing facility management systems or distributed control systems (DCS)
Accurate within ± 1% of full span
pressure sensor for rooms under positive or negative pressure
ONGUARD MONITORING
HOW IT WORKS
Diagnosis in real time — no 30 day wait or return shipping required.
COMMON INSTALLATION SITES
-
Industrial & Mission Critical Environments
• Control Rooms
• Rack Rooms
• Motor Control Centers
• Data Centers
• Server Rooms
• Critical Parts Storage Rooms -
Museum & Library Environments:
• Recirculation Air Handlers
• Storage Rooms
• Display Cases
• Archives
• Historic Houses -
Clean Room Manufacturing Environments:
• Semiconductor
• HDD
• LED
+ more
Real-time readings help determine precisely when changes occur in your facilities & diagnose the source of corrosion
Dedicated Support
Easy Installation
Scientifically Supported Results
Tailored Solutions
